Signal Generator GAM 150 N ver E

Tabela Generator GAM 150Tabela Generator GAM 150
Tabela Generator GAM 150
Tabela Generator GAM 150
Tabela Generator GAM 150
Tabela Generator GAM 150
Tabela Generator GAM 150
Catalog number 02.151(12V) lub 02.251(24V)
Dostępny
Tak
Rozmiar
175x189x59 mm
Model

Description:

Signal generators of the GAM150 N ver E series are high quality devices generating warning sounds in special and privileged vehicles.

The GAM150 N ver E series is optimized for use in emergency vehicles of the Police and Ambulance.

Basic features of GAM150 N ver E:

- Dedicated to 12V or 24V car installations,

- Low power consumption in standby (approx. 30mA),

- 100W active output power,

- Five relay outputs (Channels A, B, C, D, E),

- Horn signal control (option on the + battery side or vehicle weight),

- Two universal inputs, controlled by the vehicle mass signal available for user,

- Six standard signaling tones: WAIL, YELP, HI-LO, and others plus HORN

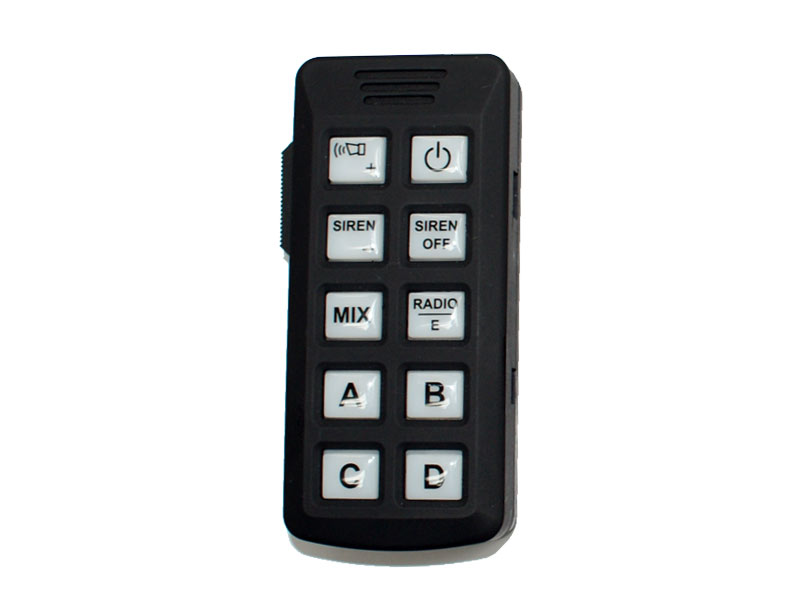

- The dimensions of the amplifier 176x155x59 mm, the dimensions of the manipulator 49x109x25 mm,

- Manipulator cable length: 4.5m (2.5m standard),

- Work with speakers with a rated impedance of 11 ohm

- Compliance with UNECE regulations R10



Interesting usable functions of GAM150 N ver E:

- The ability to turn off the keypad backlight,

- Possibility of working with half of the usable power (so-called night mode),

- Possibility to choose the method of controlling the D channel (bistable, astable),

- Possibility to choose the scenario (three types) of control via the vehicle horn.

We produced models:

GAM150 N v E 12V / 100W, for 12V installations / Index number: 02.151

GAM150 N v E 24V / 100W, for 24V installations / Index number: 02.251

Products

Our offer includes beacons, signal generators, loudspeakers and beacons and other products for emergency vehicles and road applications.

Certified quality

logomaleISO2023
GAMET Company, based on thirty two years of experience, can be proud of its knowledge of issues related to the provisions on equipping priority vehicles with warning lamps and signal generators. The culmination of our many years of efforts and confirmation of the highest level of products and services offered is the PN-EN ISO 9001: 2015 Quality Certificate. The products offered by our company meet the requirements of UNECE regulations (regarding the equipment of special and privileged vehicles R-10 and R-65). This gives you confidence that your offer will not be rejected due to the lack of required approvals for warning signaling.
