Drop-down display with computer

Description:

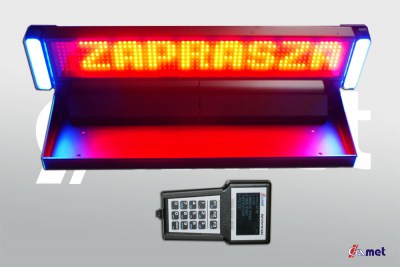

We offer unique LED raised and lowered displays with a computer. This latest version of the displays allows mounting both on the rear shelf and to the ceiling of the vehicle. When the housing of the light matrix is rotated, the inscription will move itself into the correct position, as in the familiar option on tablets and mobile phones. In the case of ceiling mounting, a locking mechanism prevents the matrix from lowering by gravity on its own.

Made with state-of-the-art light-emitting diode technology, the low-powered panels are visible from a distance.

Light elements: LEDs in the colour of your choice (red or white available).
Power supply: 12V car installation.
Operating mode: set and programmed using the supplied computer (supplied).
The purpose of the light panels is to be installed on emergency and road-service vehicles.

Once the selected message is confirmed on the computer, the display opens automatically. Optionally, the display can be equipped with additional Class II warning lights (shown in the picture), which illuminate in blue. A few seconds after the message has been extinguished, the display matrix closes automatically.

Caution: when using the set, care must be taken to ensure a safe environment for the display, as any object lying on the display may cause dysfunction of the set. The display is mechanically protected against overload and there is no risk of permanent damage to the lifting mechanism, but once the set has gone into emergency mode, it is necessary to switch off the power, remove the object blocking the matrix and switch the power back on. The set will then be ready for operation.

Automatic open/close DISPLAY is in one and only dimension:
DISPLAY 8x60 dot - size of case 550x103x37 mm. Height of signs 65 mm.

We also have display panels for mounting inside the roof bar and in a housing for mounting inside the vehicle behind the windscreen.

Manual of computers Infosystem steering displays in different language versions are available:

- wersja polska

- english version

- german version

- russian version
